OBDSTAR DC706 vs ECU Master – A Detailed Comparison for Professional Technicians

With the recent launch of the OBDSTAR ECU Master, many workshop owners and independent technicians are weighing their options against the established DC706 tablet. This breakdown clarifies the core differences in design, software architecture, vehicle coverage, and accessory requirements – so you can decide which platform better aligns with your daily workflow and future business expansion.

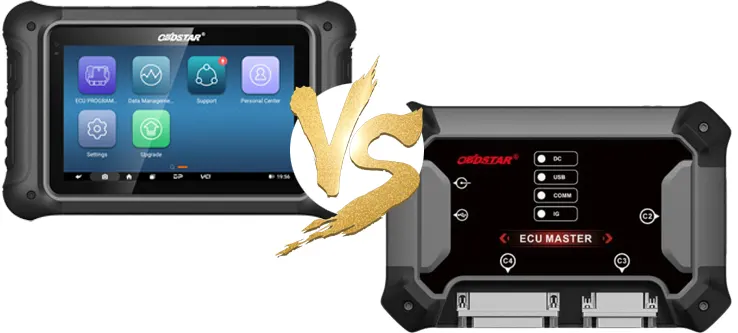

1. Form Factor – Standalone Tablet vs PC‑Driven Interface

The most visible distinction is how each tool integrates into your workspace:

• OBDSTAR DC706 is a self‑contained Android tablet with an integrated battery and touchscreen. It requires no external computer – you can perform bench and boot operations directly on the device, making it ideal for mobile use or shops with limited bench space.
• OBDSTAR ECU Master, in contrast, is a PC‑based system. It connects via USB to a laptop or desktop running Windows 10 or later. This setup appeals to technicians who prefer a larger display, keyboard/mouse control, and a permanent workstation for data management and logging.

2. Software Coverage – Passenger Car Focus vs Modular Expansion

The two tools diverge significantly in how they handle vehicle types and software licensing:

• DC706 is dedicated exclusively to passenger cars. It bundles comprehensive support for Engine (ECM), Body (BCM), and Transmission (TCM) control modules within a single, all‑in‑one package – no additional licenses needed.
• ECU Master introduces a flexible modular licensing system with four distinct configurations, allowing you to pay only for the segments you need:
  • Config A: Passenger vehicles (ECM/BCM/TCM) + Electric Vehicle (EV) modules.
  • Config B: Dedicated motorcycle engine control units.
  • Config C: Commercial heavy‑duty trucks and agricultural tractors (ECM/BCM/TCM).
  • Config D: Safety systems – including airbag reset, BMS (battery management), and SAS (steering angle sensor) calibration.

3. Hardware Integration – Built‑in Protocols vs External Adapters

For bench technicians, adapter clutter can be a real productivity drain. Here is where the ECU Master shines:

• ECU Master integrates CAN FD protocol and other advanced communication layers directly into its main interface. It also eliminates the need for separate P003+ or MP001 adapters – everything is built in, reducing cable mess and setup time.
• DC706 relies on external expansion hardware. To achieve the same level of chip and protocol coverage, you must purchase the P003+, MP001, and CAN FD adapters separately – which adds both cost and physical complexity to your bench.

4. Niche Specialisation – Trucks, Bikes, Airbags, and Marine

Depending on your workshop’s specialty, one tool may be a clear winner:

Heavy‑Duty & Agricultural Vehicles

If you service commercial fleets or farm machinery, DC706 offers zero support – it is strictly passenger‑car only. In contrast, ECU Master Config C provides full ECM, BCM, and TCM cloning for diesel trucks and tractors. This makes it a cost‑effective alternative to premium tools like Auto VEI (often exceeding €13,000 for BCM functions) or Dimsport’s The Genius (around €8,000).

Motorcycle ECM Programming

OBDSTAR is actively expanding into the powersports market. Motorcycle ECU support is exclusive to ECU Master Config B – DC706 does not cover bikes, so you would need a separate solution.

Airbag & Safety Module Resets

Collision repair shops will appreciate ECU Master Config D, which natively handles crash‑data clearing and BMS/SAS resets over CAN FD. The DC706 cannot perform these safety‑module functions at all, forcing you to purchase an additional tool like the OBDSTAR P50.

Marine Engines – The DC706 Advantage

Despite ECU Master’s broad coverage, it does not support marine ECUs. If your business involves boats, jet skis, or outboard motors, the DC706 includes dedicated marine engine support – a unique strength that ECU Master currently lacks.

Final Recommendation – Which Should You Choose?

• Pick OBDSTAR DC706 if you primarily work on passenger cars, value a standalone tablet for portability, and also service marine engines. You are comfortable with buying optional adapters when needed.
• Pick OBDSTAR ECU Master if you prefer a PC‑based workflow, want a clean bench without extra adapters, and plan to expand into electric vehicles, heavy‑duty trucks, motorcycles, or airbag resets – all without purchasing multiple standalone devices.

Both tools are powerful in their own right; the best choice depends entirely on your current vehicle mix and future business direction.
